Accessories for workbenches alongside the machine

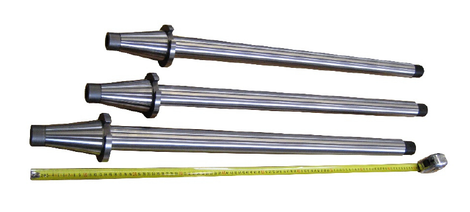

Meccanica Arnes in Cavriago deals with the design, production and marketing of accessories and spare parts for machine tools, from spindles to platforms such as the alongside machine. Do not hesitate to contact us for more information or a quote.

Toolholding fixtures universal and with roller

City skyline

Photo By: John Doe
Data Sheet
Button
Button

Features and advantages:

Designed and manufactured to protect the main parts of the toolholder chuck.

Universal tool bench

Data Sheet

Banco di maschiatura

Data Sheet

3D Edge finder

City skyline

Photo By: John Doe
Data Sheet

Features and Benefits:

the centering device is an electronic instrument used to reset distances or points;
the measuring stem is diameter 6 mm ± 0.005;
at the moment of contact, a red light turns on and an acoustic signal activated;
contact accuracy 0.005 mm;
the shank has a safety deviation of about 4 mm.

How to reset a point:

Mount the 3D Edge finder on the spindle and move from the starting point A to the point of contact B; Upon physical contact with the piece, a red light turns on and an acoustic signal activates, indicating that the position of point B is far from the center of the probe 3 mm ± 0.005.
How to center inner and outer circles:

Position the 3D Edge finder approximately in the center of the circumference, bring it into contact with a point of circumference C;
Read the position and then move the device in the opposite direction;
Then read the distance between point C and point D where the LED (red light) has turned on and the acoustic signal has activated;
Half of the measured distance L is the center of the X axis;
By repeating the same operation on the other Y axis, the center O of the circumference is obtained.
