100% Made in Italy Tapping Machines

Meccanica Arnes in Cavriago is a mechanical manifactures a wide range of Tapping machines to meet every need. For more detailed information you can visit the relevant pages of the site or contact our offices by email, via the contact form or by telephone.

Tapping attachment with automatic inversion

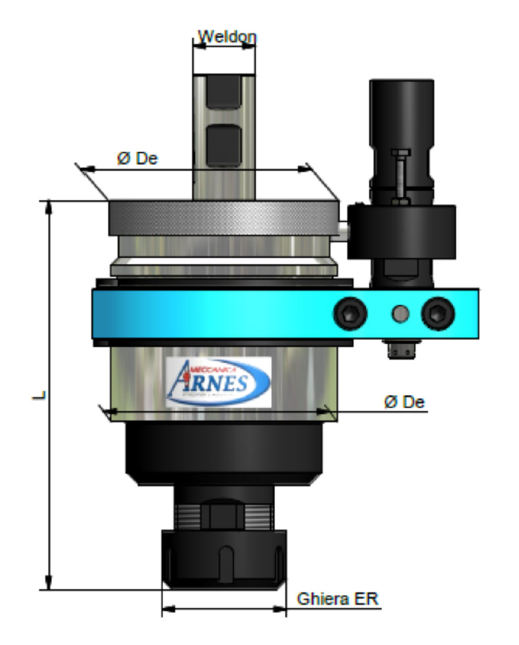

MR Series Tapping Machine

Features and Benefits:

  • Automatic reverse;
  • High speed;
  • Adjustable anti-rotation stop;
  • Stop Block on request;
  • Arrangement for external coolant (65-80);
  • Suitable for tapping in series of through and blind holes;
  • Compression compensation 3.5 mm; Tensile compensation 4 mm;
  • Tap holding with ER collets DIN6449.

Usage:

on CNC machines using a G85 boring cycle, suitable for vertical or horizontal machine tools, such as drilling or transfer units. They can also be used with left-hand taps.

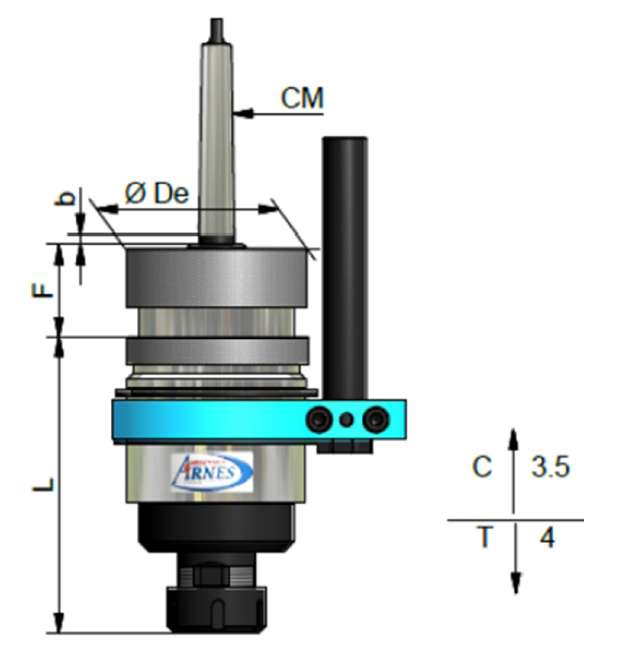

MF Series Tapping Machine

Features and Benefits:

  • Automatic reverse;
  • Adjustable safety clutch;
  • High speed;
  • Anti-rotation stop;
  • Suitable for tapping in series of through and blind holes;
  • Compression compensation 3.5 mm;
  • Tensile compensation 4 mm;
  • Tap holding with ER DIN6449 collets;
  • Stop block available on request; Water passage from the stop block on request.

Usage:

on machines without reverse gear, for vertical or horizontal use. They can also be used with left-hand taps.

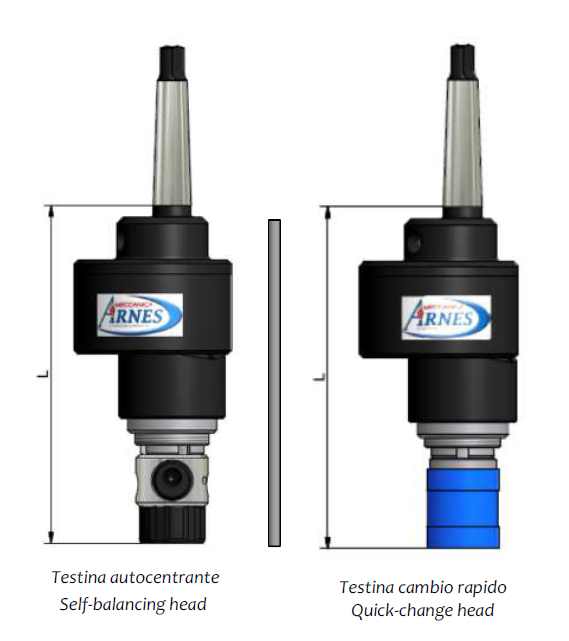

A Series Tapping Machine

Features and Benefits:

  • Automatic inversion;
  • adjustable clutch with multiple steel discs and anti-friction fiber;
  • suitable for tapping in series of blind and through holes;
  • simple and flexible tool clamping enable to install - any type of tap included in the capacity range of the tap;
  • simple, intuitive and economical use;
  • No accessory for tap holding needed

Usage:

on conventional machines for vertical use, such as column drilling machines  and on machines without reverse gear. They can also be used with left-hand taps.

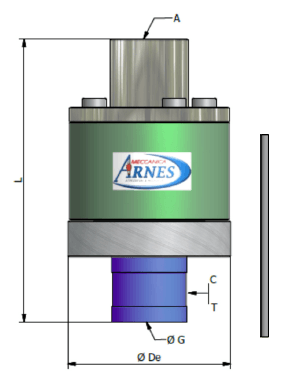

JA Series Tapping Machine

Features and Benefits:

  • Automatic inversion;
  • Equipped with female B connection for interchangeable shafts;
  • Ease of operation;
  • Suitable for series tapping of through and blind holes.

Usage:

on all machines that do not have a reverse gear.

They can also be used with left-hand taps.

Tapping attachment without self-reversing

TC Series Tapping Machine

Features and Benefits:

  • Frictionless;
  • Compression compensation for soft attachment of the tool to the workpiece;
  • Tensile compensation.

Usage:

on tapping machines, milling machines, traditional lathes and CNC machines the direction of rotation can be reversed.

TF Series Tapping Machine

Features and Benefits:

  • Adjustable safety clutch;
  • compression compensation for soft attachment of the tool to the workpiece;
  • tension compensation.

Usage:

on tapping machines, milling machines and lathes the direction of rotation can be reversed.

STC Series Tapping Machine

Cylindrical connection

Features and Benefits:

  • Synchronized tapping spindle with ER collet; Cylindrical connection;
  • Compression and traction compensation;
  • They allow to optimize the threading in the reversal phase of the machine tool.

Usage:

on CNC machine tools with synchronized feed.

R Series Tapping Machine

Features and Benefits:

  • Adjustable friction with multiple steel discs and anti-friction fiber;
  • Fastening clamp;
  • Suitable for tapping in series of blind and through holes;
  • Simple, intuitive and economical use;
  • It does not need any type of accessory because all the necessary equipment.
  •  No accessory for tap holding needed

Usage:

On tapping machines and machines with reverse gear. It can also be used for the use of left-hand taps, as long as the machine tool has a left-hand rotation.

B Series Tapping Machine

Features and Benefits:

  • Frictionless;
  • Female cone connection;
  • Simple, intuitive and economical use.

Usage:

on tapping machines and machines with reverse gear.

C Series Tapping Machine

Features and Benefits:

  • Integral cone;
  • self-centering HEAD for models C10, C14 and C20; ER collets for model C36 and C50.

Usage:

on tapping machines and machines with reverse gear.
